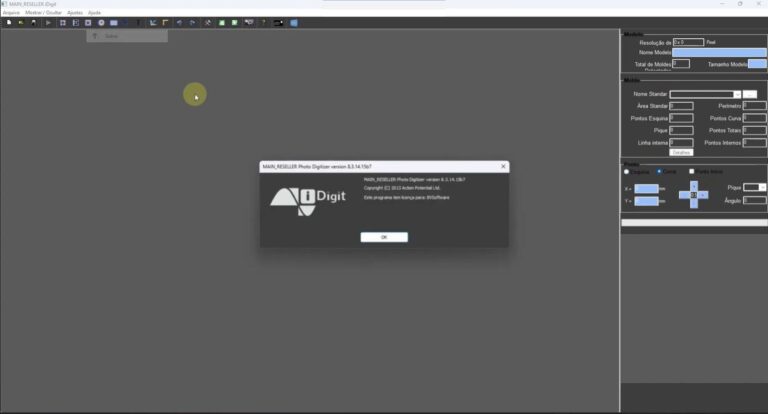

iDigit v8.3.14: Intelligent Photo Digitizing System for Pattern Making

iDigit v8.3.14 is an intelligent photo digitizing system that transforms physical patterns (paper, cardboard, fabric, leather, metal, etc.) into accurate digital vector files using a camera or smartphone . Unlike traditional digitizing tablets that require manual tracing or stationary scanners that demand physical table space, iDigit uses a proprietary magnetic reference board with precision-printed circles along its edges to automatically calibrate each image, correct lens distortion, and calculate real-world dimensions without manual intervention .

The iDigit system consists of three core components: the iDigit Software (the computer application), the magnetic iDigit Board (a wall-mountable or table-top reference board available in multiple sizes and colors), and an optional camera (or the user’s own smartphone/DSLR) .

iDigit is used across diverse industries including fashion, furniture, automotive, marine, composites, gaskets, metal sheets, and signage manufacturing . The system is available in multiple configurations: iDigit Lite (compact wall-mounted system), iDigit Plus, and iDigit XL for larger patterns

🧵 Primary Users

This professional pattern digitizing software is designed for:

• Pattern Makers & Garment Technicians converting physical paper/cardboard patterns into digital formats for fashion and apparel production

• Furniture & Upholstery Manufacturers digitizing templates for sofas, chairs, and custom furniture pieces

• Automotive & Marine Industry Professionals creating digital patterns for vehicle interiors, boat upholstery, and composite parts

• Signage & Graphics Producers digitizing vehicle livery templates and custom signage patterns

• Gasket & Metal Sheet Manufacturers producing precision templates with complex internal cut-outs and drill holes

• Leather & Footwear Designers digitizing small, intricate patterns requiring sub-millimeter precision

• Composites & Aerospace Engineers processing glossy or rough-edged templates from engineering applications

⚡ Key Features & Capabilities



🔄 Calibration-Free Digitizing Technology

Unlike traditional photo digitizers that require lengthy calibration procedures each time the camera or board is moved, iDigit automatically calibrates every image individually using the reference circles printed on the iDigit board . This means you can:

• Take pictures from different positions and angles each time with consistent, accurate results

• Relocate the board without requiring technical support or recalibration

• Use a hand-held camera or mobile phone instead of a fixed overhead mount

🎯 Automatic Feature Detection

iDigit automatically detects and digitizes pattern features including :

• Pattern outlines – Outer contours of the template

• Notches – V-notches, slit notches, and other marker types

• Cut-outs – Internal openings and cavities

• Drill holes – Small circular markings for alignment

• Internal lines – Grain lines, fold lines, and construction marks

• Magnets – Automatically ignored during digitization (magnets hold patterns to the board)

✏️ Built-in CAD Editing Tools

iDigit includes extensive editing functions that eliminate dependency on separate CAD software :

• Pattern smoothing for rough-edged materials (fabric, calico, composites)

• Seam allowance addition and modification

• Pattern shrinking/enlarging (grading)

• Mirroring, rotation, and fusing (combining patterns)

• Spline and arc manipulation

• Custom shape library for frequently used elements

• Darts and pocket creation

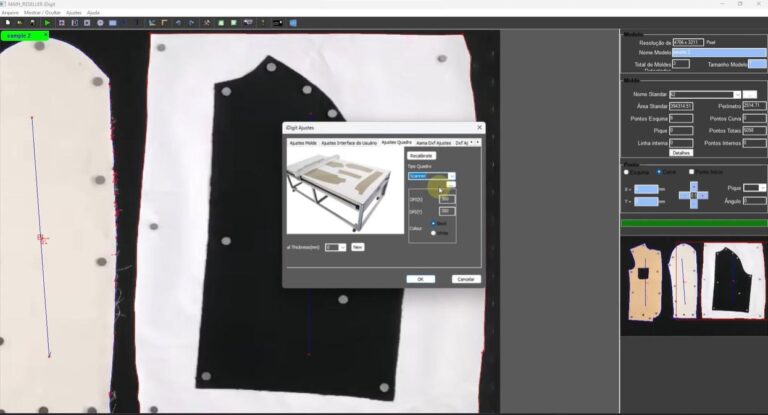

The software displays the original photo as a background guide while editing, eliminating the need to keep physical patterns visible for reference .

📁 Wide Format Compatibility & Export Options

iDigit exports patterns in multiple industry-standard formats for seamless integration with existing CAD/CAM workflows :

Users can export all patterns from an image, select specific patterns, or combine patterns from multiple images into a single file. Patterns can be copy-pasted directly into Adobe Illustrator without saving intermediate files .

🧲 Precision & Accuracy

For sub-millimeter accuracy, a scanner can be used as an alternative input method, achieving precision below 0.5 mm for small patterns .

🧩 Magnetic Board System

The iDigit board features a matt, magnet-receptive surface that :

• Provides ideal contrast between patterns and background

• Allows patterns to be fixed with magnets instead of adhesive tape (protecting delicate patterns from wear and tear)

• Accommodates patterns of any color (white sheet can be placed under dark patterns for contrast)

• Is available in black or white depending on pattern color requirements

📐 Partial Digitizing for Oversized Patterns

Patterns larger than the board (up to 2.5 meters wide) can be digitized using the Partial Digitizing feature without cutting the original template . The system automatically stitches multiple captures into a complete digital pattern.

🧠 Compatibility with Major CAD/CAM Systems

iDigit works with virtually all major CAD/CAM software platforms, including :

🎛️ Multi-Language Support

The iDigit interface is available in 14 languages, including English, French, Spanish, Italian, German, Portuguese, Korean, Chinese, Turkish, and more .

🆕 What’s New in Version 8.3.14

Based on the continuous evolution of the iDigit platform, version 8.3.14 includes:

• Enhanced automatic feature detection algorithms for improved notch, cut-out, and drill hole recognition

• Refined pattern smoothing for rough-edged materials such as fabric, composites, and worn paper patterns

• Expanded camera compatibility library supporting newer smartphone and DSLR models

• Improved DXF export with customizable layer structure for better integration with downstream CAD systems

• Optimized processing speed for faster digitization of complex patterns with multiple cut-outs

• Performance enhancements for large partial digitizing projects
