OFFPIPE 3.0

Download OFFPIPE 3.0 – Offshore Pipeline Structural Analysis Software

Download OFFPIPE 3.0, a specialized finite element method (FEM) based software designed for nonlinear structural analysis of offshore pipeline installation and operational challenges. Developed for the offshore oil and gas industry, this application models complex scenarios encountered in subsea pipeline engineering, providing advanced simulation capabilities for engineers focused on pipeline integrity and installation planning.

Specialized Simulation for Offshore Pipeline Installation Challenges

OFFPIPE 3.0 is engineered to address the intricate nonlinear structural analysis requirements specific to offshore pipeline engineering. It leverages the finite element method to simulate a wide range of static and dynamic conditions that arise during the installation and operational phases of subsea pipelines. This specialized tool is crucial for professionals in the offshore oil and gas sector who are tasked with ensuring the safety, integrity, and efficiency of pipeline projects in challenging marine environments.

Comprehensive Pipelay Modeling and Analysis Techniques

The software offers robust capabilities for modeling various offshore pipelay methods in both 2D and 3D environments. It supports conventional laybarge operations, stinger-assisted laying, and the J-lay method, allowing engineers to simulate precise installation sequences. Analyses can encompass static configurations or dynamic responses that account for critical environmental factors such as wave action and current loading, providing a comprehensive view of pipeline behavior during laying.

Advanced Nonlinear Structural Analysis of Pipeline Spans and Seabed Interaction

OFFPIPE employs nonlinear finite element analysis, considering both geometric and material nonlinearities, to accurately model pipeline behavior. A key feature is its ability to simulate pipe spans resting on the seabed, using a continuous elastic-plastic foundation model that captures soil-pipe interaction. This approach allows for detailed stress and deformation analyses under various static and dynamic loading conditions, including thermal expansions and environmental forces, ensuring pipeline integrity.

Accurate Modeling of Pipelay Equipment and Support Systems

This software provides detailed modeling of essential pipelay equipment and support systems. Engineers can simulate pipe supports, such as rollers and restraints, along with the structural models of the laybarge and stinger. The analysis extends to pipelay initiation and abandonment/recovery scenarios, incorporating specific loadings derived from ballast schedules, hinge configurations, and considerations for pipe properties like bundles and coatings.

User Interface and Visualization Tools for Enhanced Analysis Interpretation

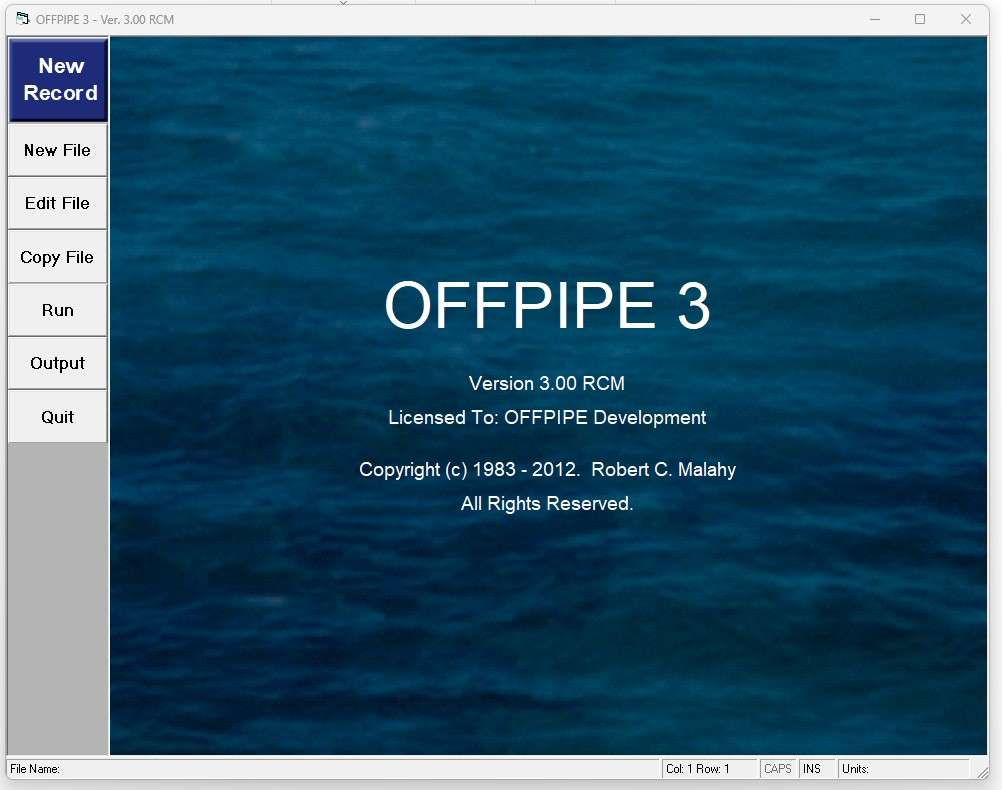

OFFPIPE 3.0 features an interactive, menu-driven user interface designed for ease of use and efficient workflow management. It offers comprehensive graphical output capabilities, enabling engineers to visualize complex analysis results effectively. A context-sensitive help system is integrated to assist users, and the software supports plotting functionalities compatible with standard hardware, facilitating clear interpretation of simulation outcomes.

Industry Applications and Practical Use Cases in Offshore Energy Projects

In the offshore oil and gas industry, OFFPIPE 3.0 is extensively utilized for critical engineering tasks. Its applications span the planning and execution of pipeline installation, including management of pipelay initiation, abandonment, and recovery operations. Furthermore, it is instrumental in performing fatigue life assessments and ensuring the long-term operational integrity of subsea pipelines in demanding offshore environments.

Frequently Asked Questions

What types of offshore pipeline installation methods does OFFPIPE 3.0 support?

OFFPIPE 3.0 supports modeling of conventional laybarge, stinger-based pipelay, and J-lay methods. It can simulate both static and dynamic conditions specific to these installation techniques, offering flexibility for various project requirements.

How does OFFPIPE handle seabed and soil interaction in pipeline analysis?

OFFPIPE employs a continuous elastic-plastic foundation model to represent seabed soil behavior with bilinear lateral resistance. This approach effectively captures both small elastic deformations and large frictional displacements, providing realistic simulation of pipeline-soil interaction under operational loads.

Can OFFPIPE perform dynamic analysis under environmental conditions such as waves and currents?

Yes, OFFPIPE can perform dynamic analyses using input parameters like laybarge RAOs (Response Amplitude Operators) and wave spectra. This allows for the calculation of detailed pipeline and stinger responses, including stresses and deflections, under various environmental loadings like waves and currents.
