VGSTUDIO MAX 2024.2: Industrial CT Data Analysis & Volume Graphics Software

VGSTUDIO MAX 2024.2 is the flagship software by Volume Graphics (a Hexagon company) for the analysis and visualization of industrial computed tomography (CT) data, as well as data from other 3D imaging technologies like confocal microscopy and ultrasonic testing . It is widely recognized as the industry gold standard for non-destructive testing (NDT), enabling users to see inside components to detect defects, measure geometries, and analyze material properties without cutting or destroying the part.

Version 2024.2 builds upon the robust 2024.x architecture, introducing features such as OCR analysis for part traceability, enhanced Porosity/Inclusion Analysis (PIA) with noise reduction, linear size measurement shortcuts, and interactive HTML reports . Whether you are performing first-article inspection, analyzing fiber composites, or simulating structural mechanics, VGSTUDIO MAX delivers the precision and automation required for modern manufacturing.

???? Primary Users

This professional industrial CT software is designed for:

  • Quality Assurance & Metrology Engineers performing dimensional analysis and GD&T on manufactured parts .

  • Materials Scientists & Failure Analysts detecting internal defects like cracks, pores, and inclusions in castings and additively manufactured parts .

  • Aerospace & Automotive Engineers inspecting turbine blades, composite structures, and engine components for zero-defect certification .

  • Electronics & Battery Manufacturers analyzing solder joints, microelectronics, and battery cell integrity.

  • Additive Manufacturing Specialists validating 3D printed parts and optimizing process parameters

⚡ Key Features & Capabilities



???? Advanced Analysis Modules

Porosity/Inclusion Analysis (PIA):

  • Detects and visualizes voids, pores, and inclusions in castings, additively manufactured parts, and welds

  • Features industry-specific compliance tools (e.g., P 202 / P 203 for casting)

  • New in 2024.2: Noise reduction and usability improvements for more accurate defect detection

Fiber Composite Material Analysis:

  • Analyzes fiber orientation, volume fraction, and fiber length in reinforced composites

  • Critical for aerospace and automotive lightweight structures

Nominal/Actual Comparison (CAD Comparison):

  • Compares the scanned “actual” part against a CAD “nominal” model

  • Generates intuitive color-coded deviation maps (CAD-GP) to visualize errors in shape, dimensions, and position

Wall Thickness Analysis:

  • Automatically calculates minimum and maximum wall thicknesses

  • Identifies critical thin areas in castings, injection-molded parts, and medical implants

Volume Meshing & Simulation (Add-on Modules):

  • Creates high-quality tetrahedral volume meshes directly from CT data or CAD files

  • Exports meshes for Finite Element Analysis (FEA) in ANSYS, Abaqus, or other solvers to predict mechanical behavior

???? Dimensional Metrology (GD&T)

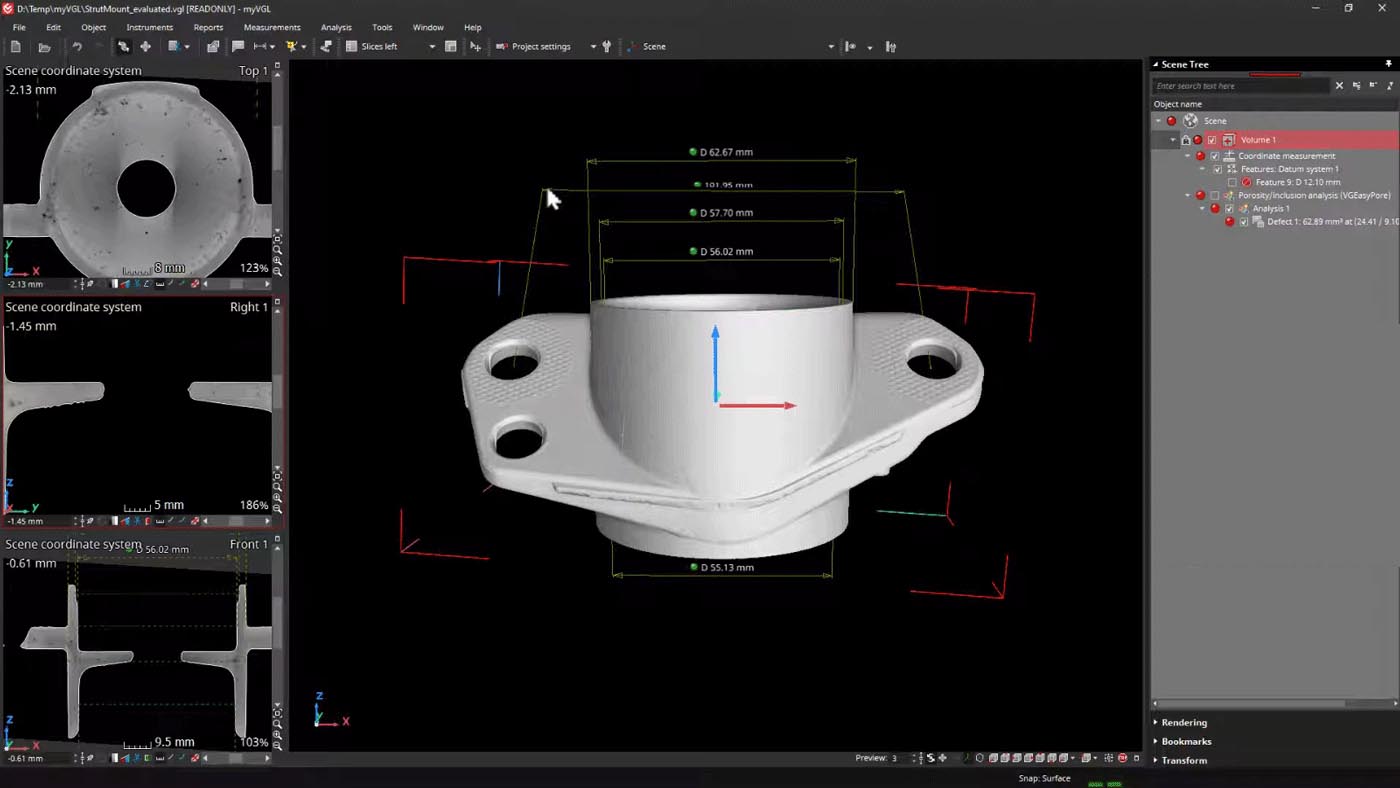

  • Complete GD&T Support: Full suite of geometric dimensioning and tolerancing tools (flatness, roundness, true position, profile)

  • Coordinate Measurement Module: User-defined coordinate systems and measurement plans

  • Linear Sizes: New in 2024.2 includes shortcut symbols and visual representation for common linear size measurements like LP (two-point) and Envelope requirement

  • High Accuracy: Utilizes the ISO 50 surface determination principle, validated by PTB and NIST, achieving sub-voxel accuracy

???? Automation & Workflow

  • Split ROI: Easily separate multiple parts scanned in a single CT volume into individual Regions of Interest for batch processing

  • Macros & Templates: Record complex analysis sequences into repeatable macros

  • OCR Analysis: New in 2024.2 reads part numbers or serial numbers directly from CT scans for automated data logging and traceability .

  • VGinLINE Integration: Connects directly to production lines for fully automated inline inspection

???? Visualization & Reporting

  • Real-Time Ray Tracing: Photorealistic 3D visualization of voxel data, point clouds, and CAD models

  • Interactive HTML Reports: New in 2024.1/2 creates self-contained, interactive 3D PDF/HTML reports that can be shared and viewed in any browser without a license

  • PNG Export: Direct copy-paste of images and analysis results into standard office documents

???? What’s New in Version 2024.2

  • Linear Sizes: Support for modifier symbols (LP, Envelope) in report graphics

  • OCR Analysis: Automated text recognition from CT slices for part traceability

  • PIA Improvements: Noise reduction and performance enhancements for Porosity/Inclusion Analysis

  • Export Queue: Manage batch exports of images, reports, and data
