TiSoft Electrical Design v26.0

TiSoft Electrical Design is a specialized electrical engineering design tool for building electrical installations – enabling engineers to design full electrical systems (wiring, panels, distribution), perform automatic calculations (load, voltage drop, short circuit), ensure compliance with IEC and European codes, create electrical schematics, floor plans, reports, and documentation, and visualize installations in 2D/3D before construction. Version v26.0 continues TiSoft’s legacy of integrating CAD-based design with rigorous electrical engineering calculations, offering automated panel schedules, cable sizing, protection device coordination, and energy balance. Whether designing a small residential apartment or a large commercial complex with multiple distribution boards and backup generators, TiSoft Electrical Design delivers the accuracy, efficiency, and code compliance that modern building electrical design demands.

???? Primary Users

This professional electrical engineering software is designed for:

  • Electrical Engineers & MEP Consultants designing complete electrical systems for residential, commercial, and industrial buildings.

  • Building Services Designers integrating power distribution, lighting, and low-current systems.

  • Electrical Contractors & Installers preparing installation drawings, panel schedules, and material take-offs.

  • Facility Managers & Building Owners documenting as-built electrical systems for maintenance and upgrades.

  • Code Compliance & Inspection Authorities verifying electrical designs against IEC and European standards.

⚡ Key Features & Capabilities

???? Full Electrical System Design

System Components:

  • Main distribution board (MDB), sub-distribution boards (SDB), final distribution boards (FDB)

  • Cables and wiring (copper, aluminum – XLPE, PVC, EPR, mineral insulated)

  • Protective devices: circuit breakers (MCB, MCCB, ACB), fuses, RCDs (residual current devices), surge protective devices (SPD)

  • Load types: lighting, power sockets, HVAC, pumps, elevators, kitchen equipment, IT

Wiring Configurations:

  • TN-C, TN-S, TN-C-S, TT, IT earthing systems

  • Radial, ring final, and mixed circuits

???? Automatic Electrical Calculations

Load Calculation:

  • Connected load (kW, kVA) per circuit, per panel, per building

  • Diversity factor / demand factor (IEC 60364 / HD 60364)

Voltage Drop:

  • Per circuit, per phase (IEC 60364-5-52)

  • Maximum allowed: 3% for lighting, 5% for other uses

Short-Circuit Current:

  • I”k short-circuit current at every distribution point

  • Peak current (ip) for electrodynamic stress

Protection Coordination:

  • Tripping curves: B, C, D, K, Z (MCB), thermal-magnetic and electronic trip (MCCB)

  • Cascading and selectivity verification

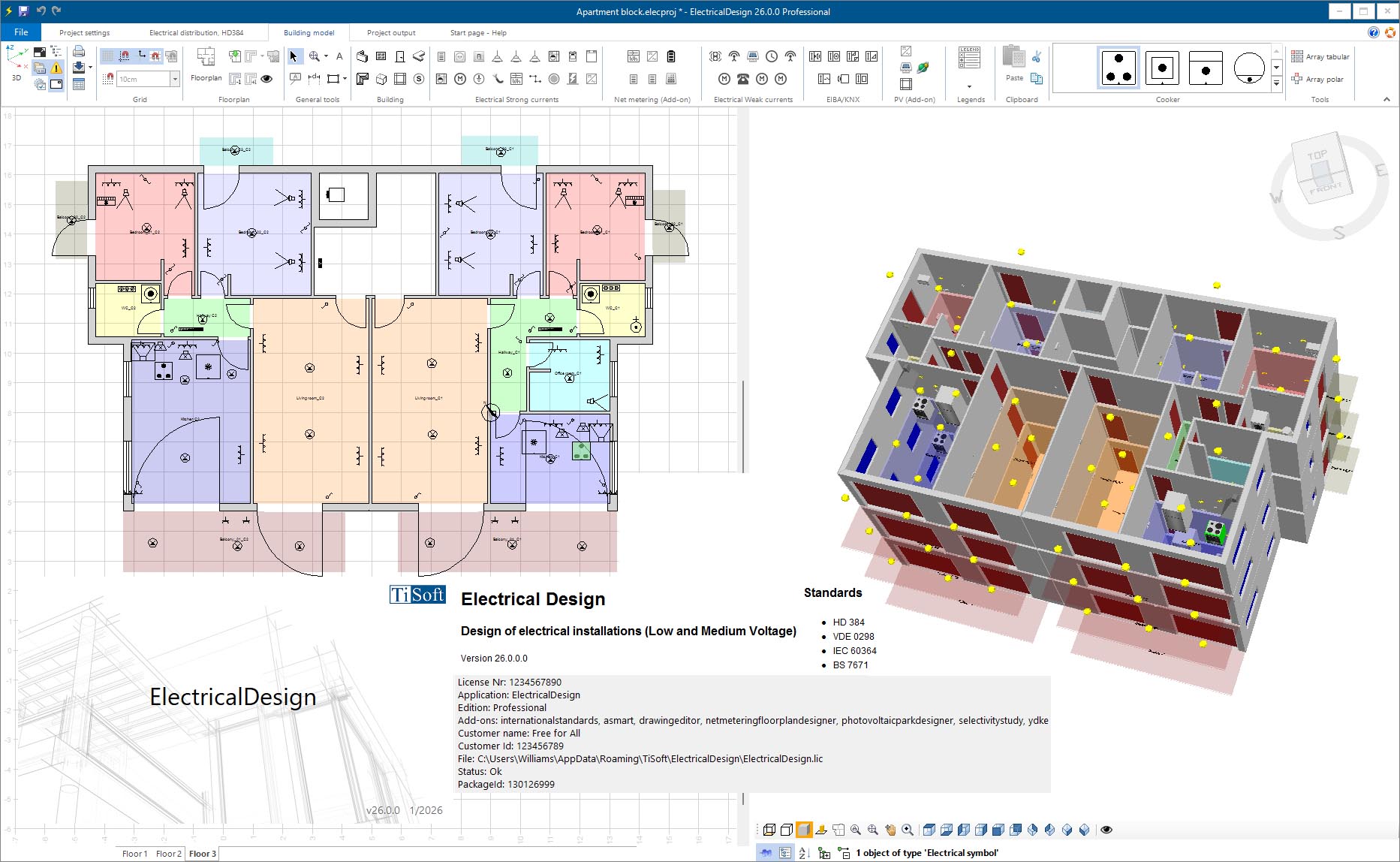

???? 2D/3D Visualization

  • Place electrical symbols (sockets, switches, luminaires, panels) on architectural floor plan (DXF/DWG import)

  • 3D viewer: cables, conduits, junction boxes – clash-free routing

  • Section view: distribution riser, cable tray, trunking

???? Panel & Circuit Documentation

Panel Schedule:

  • Phase assignment (L1, L2, L3), current per phase, total load (kVA)

  • Incoming/outgoing protection (rating, type)

Cable & Wiring Report:

  • Cable length, size (mm², AWG), type, insulation

???? Compliance with IEC & European Codes

  • IEC 60364 (Low-voltage electrical installations) – HD 60364

  • IEC 60909 (Short-circuit)

  • EN 61439 (Low-voltage switchgear and controlgear assemblies)

???? What’s New in Version v26.0

  • IEC 60364-5-52 2025 Update – Ampacity tables for XLPE, EPR insulated cables

  • Arc Flash Label (IEC/TR 61641) – Incident energy (cal/cm²), arc flash boundary (mm)

  • Circuit Tracker – Click on socket → end‑to‑end validation (panel, cable, protection, earth loop)

  • EV Charging Module – Load profile, dedicated meter, Type A + 6 mA DC RCD requirement

  • Photovoltaic (PV) Integration – Inverter AC output, grid connection point (parallel)

  • Cloud Device Libraries – Pull data from Schneider, Siemens, ABB, Eaton, Hager

???? System Requirements

Minimum Requirements

  • OS: Windows 10/11 (64-bit)

  • CPU: Intel Core i3 or equivalent

  • RAM: 6 GB

  • Storage: 3 GB free space

  • Display: 1280 × 1024 resolution

  • Graphics: OpenGL 3.3 compatible with 2 GB VRAM

???? Industry Applications

  • Residential Buildings – Apartments, houses, multi‑dwelling units

  • Commercial Buildings – Offices, retail, hotels, restaurants, shopping centers

  • Public Buildings – Schools, hospitals, sports halls, government buildings

  • Industrial Facilities – Warehouses, workshops, factories

  • EV Charging Infrastructure – Parking garages, office parks, fleet depots
