VibTrend 2 is specialized industrial vibration monitoring and analysis software developed by TPI Corporation, designed to support predictive maintenance programs for rotating machinery. This software facilitates early fault detection and failure prevention by integrating with TPI 9080 Smart Trend Vibration Meter devices for streamlined data collection. It is critical for asset management in demanding sectors such as manufacturing, power generation, oil & gas, and pharmaceuticals, where equipment reliability directly impacts operational continuity and safety.

Overview of VibTrend 2 and Its Industrial Applications

VibTrend 2 serves as a core component for condition monitoring, offering a structured approach to analyzing mechanical health through vibration data. In industrial environments, the early identification of issues in rotating equipment like motors, pumps, and compressors is paramount for efficiency and safety. Predictive maintenance, enabled by tools like VibTrend 2, shifts maintenance strategies from reactive to proactive, significantly reducing unplanned downtime and associated costs. This software supports specialists in upholding machine reliability across various heavy industries, including steel production, chemical processing, and pharmaceutical manufacturing.

Comprehensive Asset and Measurement Point Management

VibTrend 2 provides robust capabilities for organizing and managing industrial assets and their associated measurement points. This systematic approach is fundamental for comprehensive condition monitoring. The software allows users to create detailed databases of machinery, sensors, and specific monitoring locations, ensuring that vibration data is collected from precisely the right points on each machine. The Standard version supports up to 10 assets with 10 measurement points each, while the Pro version offers unlimited scalability to accommodate extensive industrial facilities with thousands of monitoring points, ensuring effective data management regardless of operation size.

Advanced Vibration Data Acquisition and Analysis Techniques

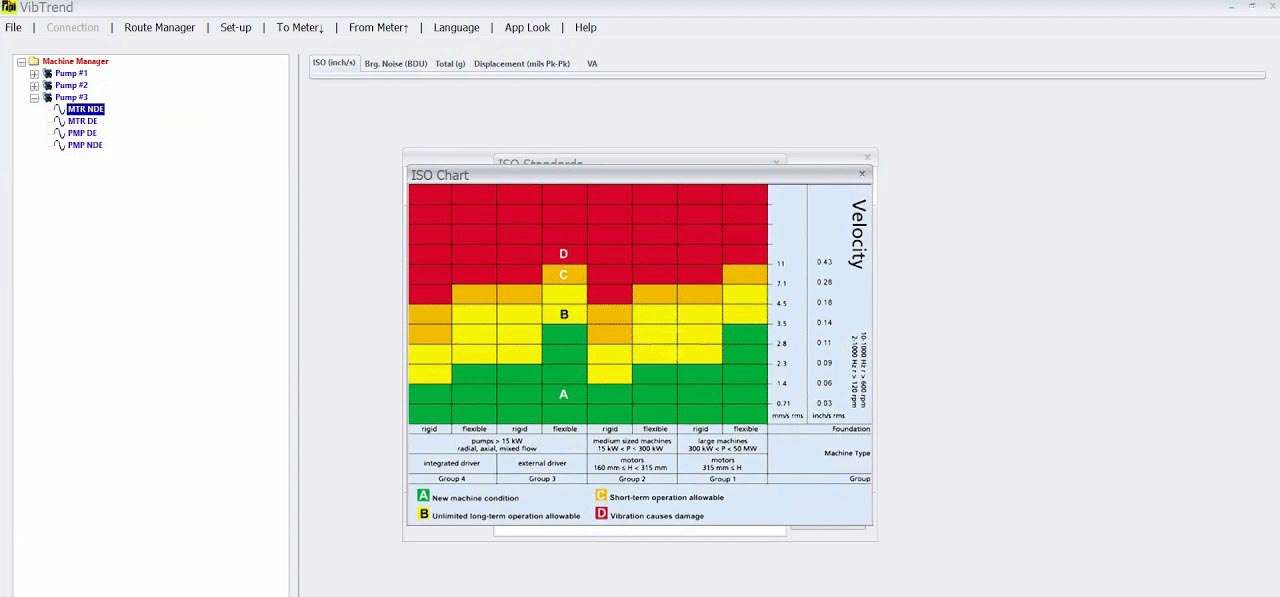

Data acquisition in VibTrend 2 is primarily facilitated through seamless integration with the TPI 9080 Smart Trend Vibration Meter. Once data is collected, the software employs advanced analysis techniques, including Fast Fourier Transform (FFT) for frequency spectrum displays. This allows for detailed diagnosis of common mechanical faults such as imbalance, misalignment, and bearing looseness by examining the characteristic frequencies of these issues. Furthermore, VibTrend 2 incorporates an ISO and BDU-based alerting system, utilizing color-coded warnings to signal potential problems and facilitate rapid identification by maintenance personnel.

Trend Visualization and Predictive Alerts for Machinery Health

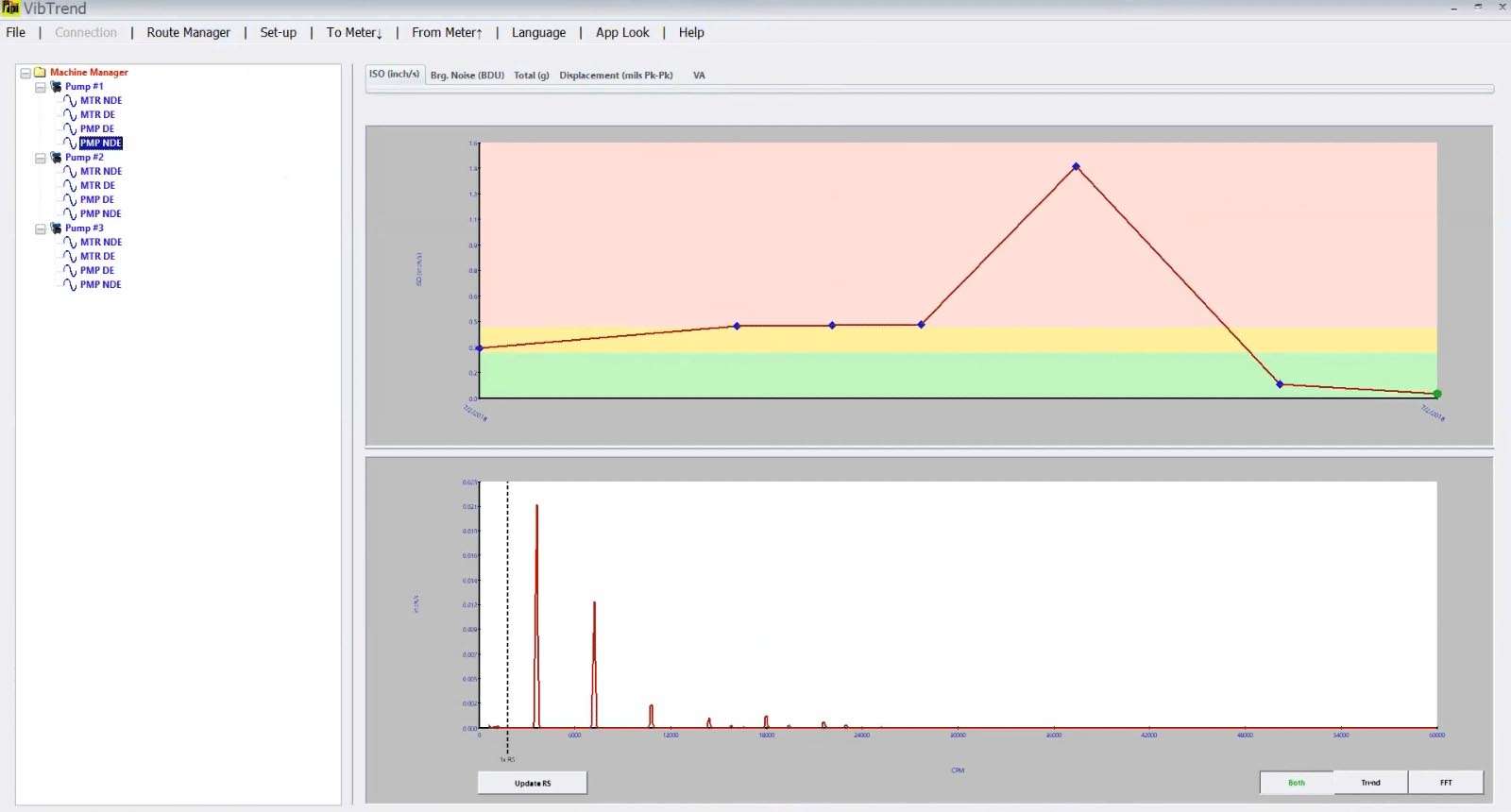

A key feature of VibTrend 2 is its ability to present vibration data over time using intuitive trend charts. These visualizations allow maintenance engineers and reliability specialists to track changes in machine vibration signatures, observe degradation patterns, and identify gradual increases in fault severity. The software’s alerting mechanisms are triggered by vibration levels exceeding predefined thresholds, providing timely notifications. This proactive approach enables engineers to schedule maintenance interventions effectively, preventing catastrophic failures and optimizing the operational lifespan of critical industrial machinery.

Enhanced Reporting and System Integration Features in Version 2

Version 2 of VibTrend 2 introduces significant improvements in reporting and user interface usability, enhancing the overall maintenance workflow. The software supports both automated and manual report generation, allowing teams to document findings, track repair histories, and demonstrate maintenance effectiveness. Automated email alerts further streamline communication, notifying relevant personnel immediately when critical vibration thresholds are breached. VibTrend 2 is also designed for integration with existing maintenance management systems and databases, enabling a more cohesive approach to asset management and operational data handling.

Use Cases Demonstrating VibTrend 2 in Industrial Environments

VibTrend 2 has been instrumental in various industrial settings for diagnosing and preventing equipment failures. For instance, in steel mills, it has successfully detected early signs of bearing wear in rolling machinery, preventing costly unplanned shutdowns. In chemical plants, the software aids in identifying shaft misalignment in high-speed pumps, mitigating the risk of seal failures and hazardous leaks. Similarly, in power generation facilities, VibTrend 2 is used to pinpoint imbalances in large turbine fans, ensuring consistent power output and operational safety. These applications underscore the software’s value in reducing downtime and extending the service life of essential industrial equipment.

Frequently Asked Questions

How does VibTrend 2 help prevent equipment failure in industrial machines?

VibTrend 2 continuously monitors vibration signals from machinery and analyzes frequency patterns to identify early signs of faults such as imbalance or misalignment. By providing trend charts and color-coded alerts based on recognized standards, it enables maintenance teams to take proactive action before failures occur.

Can VibTrend 2 handle data from multiple machines and sensor points?

Yes, VibTrend 2 supports management of multiple assets and measurement points, with the Standard version allowing up to 10 assets with 10 points each, and the Pro version offering unlimited storage to scale with industrial needs.

What types of vibration faults can VibTrend 2 detect through its analysis tools?

The software uses advanced FFT analysis and band filtering to detect common fault types including machine imbalance, shaft misalignment, and looseness of components, providing clear diagnosis to aid maintenance.
