Download SKM GroundMat 2.0.2.5 – Electrical Grounding Network Design and Safety Analysis Software

SKM GroundMat 2.0.2.5, developed by SKM Systems Analysis, Inc., is a specialized electrical engineering software designed for the comprehensive analysis and design of grounding systems within electrical power networks. This tool is crucial for electrical power systems engineers, utilities, and safety engineers involved in electrical installation design, enabling them to ensure optimal safety and effectiveness of grounding configurations in power systems.

Overview of Electrical Grounding Challenges and Industry Applications

Effective electrical grounding is fundamental to the safe operation of any electrical power system. It provides a path for fault currents to dissipate safely into the earth, protecting personnel from hazardous voltages and safeguarding equipment from damage. Challenges in grounding design stem from complex soil resistivities, varying fault current magnitudes, and the need to minimize dangerous ground potential rise, touch, and step voltages.

The SKM GroundMat software serves critical roles across several key industries. Power utilities rely on it for substation grounding and transmission system integrity. Industrial electrical designers use it for manufacturing plants and complex facilities where fault currents can be significant. Furthermore, it is instrumental in infrastructure projects, ensuring the grounding safety of new constructions such as airports, data centers, and renewable energy installations.

Advanced Ground Network Design Tools Using Finite Element Analysis

SKM GroundMat employs sophisticated numerical methods, including finite element analysis (FEA) and matrix methods, specifically adapted for the intricacies of electrical grounding networks. These algorithms allow for precise simulations of how electrical conductors, ground rods, and conductive structures interact with the earth to dissipate fault currents.

The software accurately models various grounding components, such as buried conductors, ground rods of different lengths and configurations, and mesh grids. It calculates current distribution within the grounding network and the surrounding soil. This detailed modeling capability is essential for predicting system behavior under fault conditions and for designing networks that meet stringent safety and performance criteria.

Comprehensive Safety Assessment Based on IEEE and IEC Standards

A core function of SKM GroundMat is its ability to perform comprehensive safety assessments directly aligned with established international standards. The software calculates critical safety parameters such as ground potential rise (GPR), maximum allowable touch voltage, and maximum allowable step voltage.

Compliance with industry safety benchmarks is paramount. SKM GroundMat integrates analysis methodologies derived from IEEE Std. 80 (Guide for Safety in AC Substation Grounding) and IEC Std. 479 (Effects of current on humans and livestock) series of standards. This ensures that the grounding designs analyzed and optimized by the software meet the rigorous safety requirements necessary to mitigate electrical hazards for personnel working in and around electrical installations.

Multi-System Ground Network Analysis and Optimization Features

SKM GroundMat offers advanced capabilities for analyzing complex grounding scenarios that involve multiple interconnected systems. It can model and simulate several independent grounding systems simultaneously, evaluating their mutual influence on each other, particularly in shared soil environments or adjacent installations.

The software facilitates optimization through its visualization and reporting tools. Engineers can graphically log and display grounding networks, including current densities and surface potentials, aiding in the identification of potential hot spots or areas of concern. These visual aids are critical for understanding the system’s behavior and for documenting optimization strategies applied to achieve cost-effective and safe grounding designs.

Real-World Applications and Case Studies in Power System Engineering

In practical power system engineering, SKM GroundMat is utilized for a variety of essential tasks. For instance, engineers use it to design grounding systems for new substations, ensuring adequate fault current dissipation and minimizing touch and step potentials during high-magnitude fault events. It is also applied to validate the grounding integrity of existing facilities, identifying potential deficiencies that could pose safety risks.

Another key application involves the assessment of safety hazards in complex industrial environments where substantial fault currents may occur. By simulating fault conditions, engineers can precisely evaluate risks associated with specific grounding configurations and implement necessary modifications to enhance personnel safety and equipment protection, ensuring compliance with performance expectations.

Generating Detailed Professional Reports and Visual Data

A critical output of SKM GroundMat is its capacity to generate comprehensive and professional documentation. Engineers can produce detailed reports that encapsulate all aspects of their grounding system analysis and design process. These reports typically include design parameters, simulation results, and safety compliance summaries.

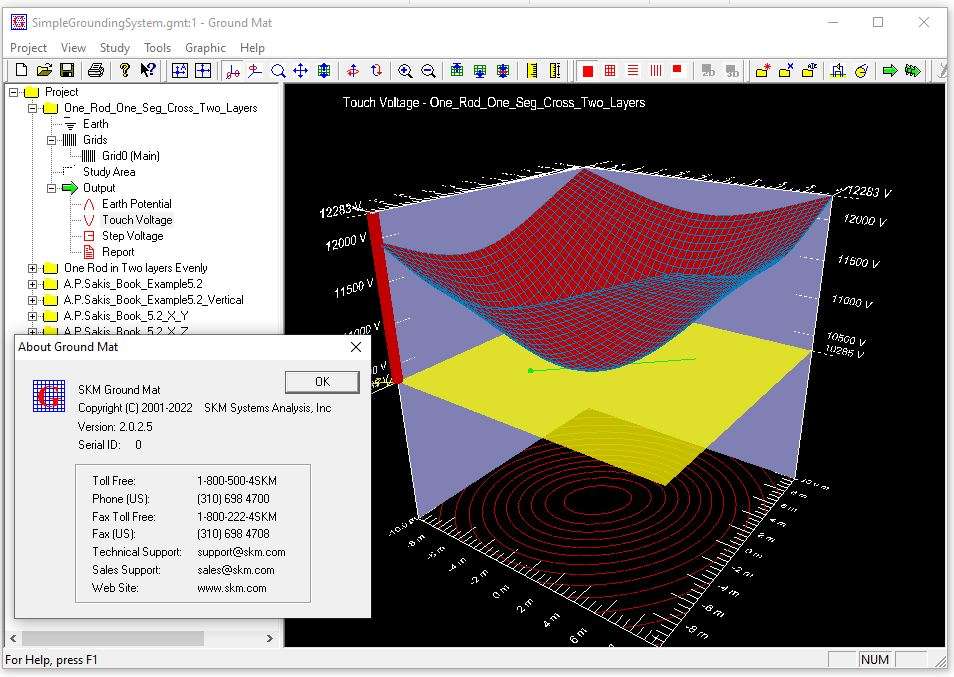

The software provides robust visualization tools, allowing for the generation of graphical data such as surface potential contour plots and station data representations. This visual information is invaluable for clearly communicating the findings of the grounding analysis to project stakeholders, regulatory bodies, and other engineering disciplines, thereby facilitating project approvals and ensuring a shared understanding of the grounding system’s performance and safety characteristics.

Frequently Asked Questions

What is SKM GroundMat used for in electrical engineering?

SKM GroundMat is specialized software used for the design and analysis of electrical grounding systems, helping engineers optimize ground network safety and effectiveness in power systems. It aids in simulating fault current behavior and ensuring that grounding configurations meet required safety and performance standards for various applications.

How does SKM GroundMat ensure compliance with safety standards?

The software incorporates safety assessments based on IEEE Std. 80 and IEC Std. 479, calculating maximum allowable touch and step voltages to ensure grounding networks meet industry safety requirements. This adherence to recognized standards is critical for validating the safety of electrical installations.

Can SKM GroundMat analyze multiple grounding systems simultaneously?

Yes, SKM GroundMat can analyze multiple interconnected grounding systems, including passive networks and neighboring rods, providing comprehensive potential rise and fault current analysis. This capability is essential for understanding the interactions within complex or adjacent grounding configurations.
